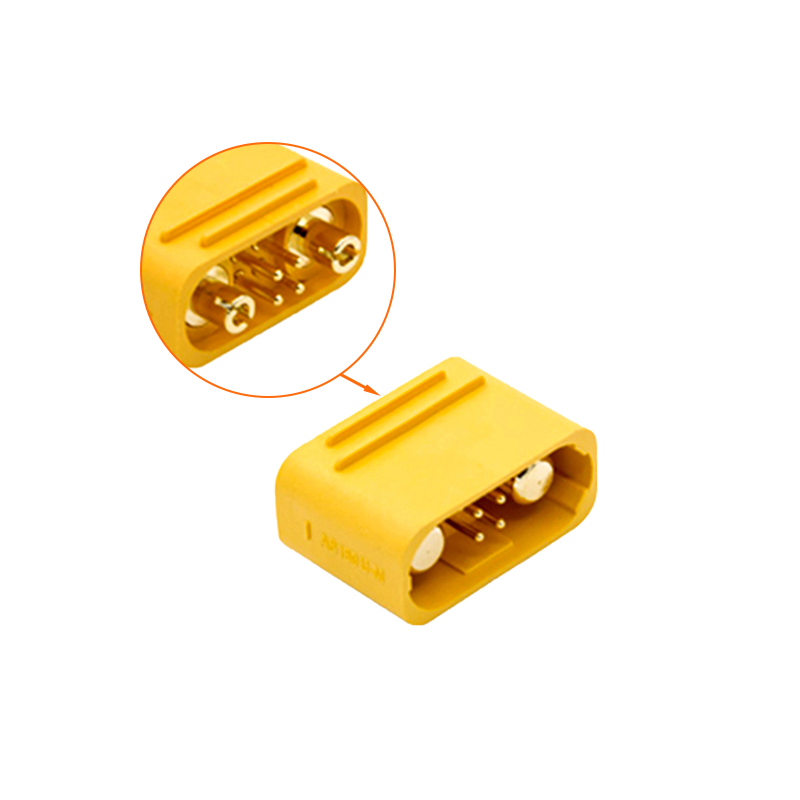

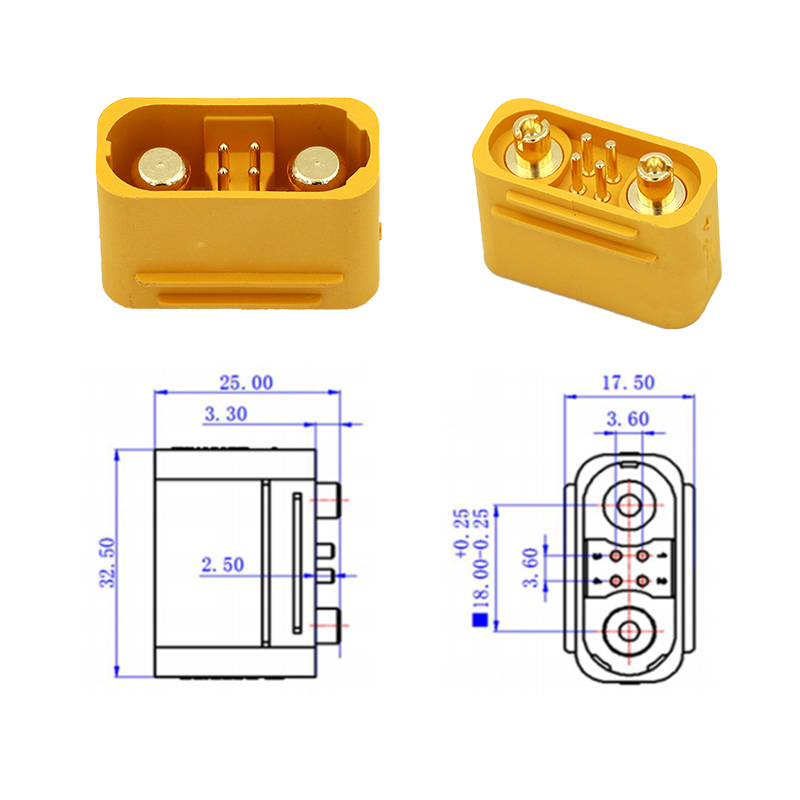

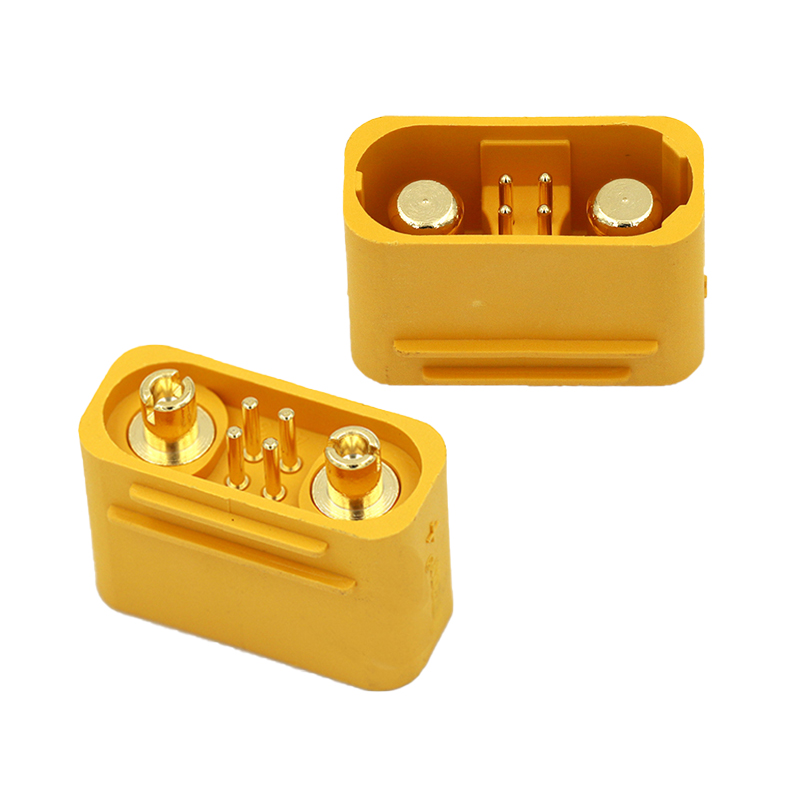

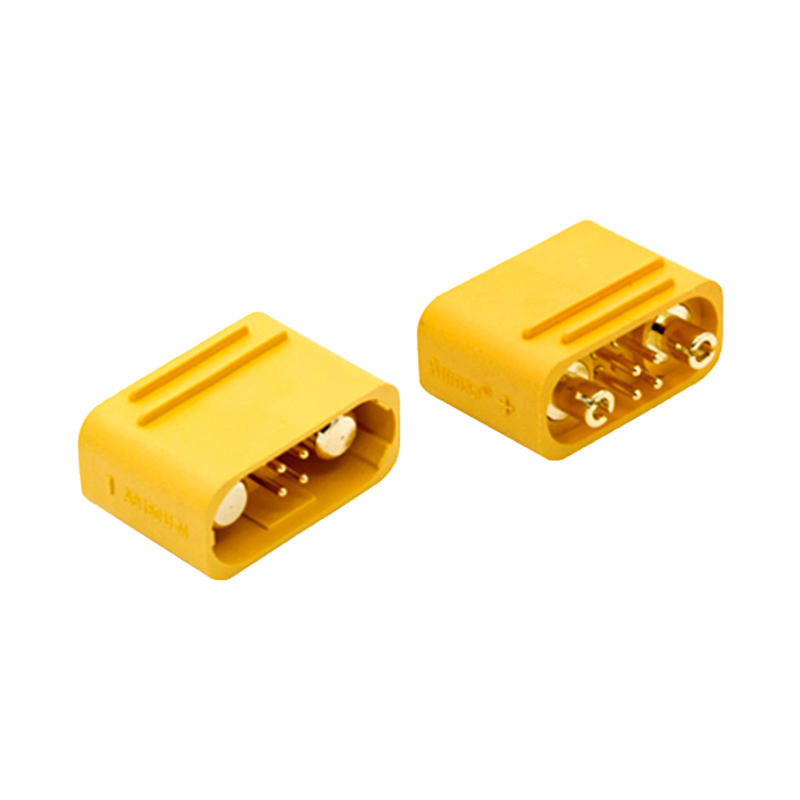

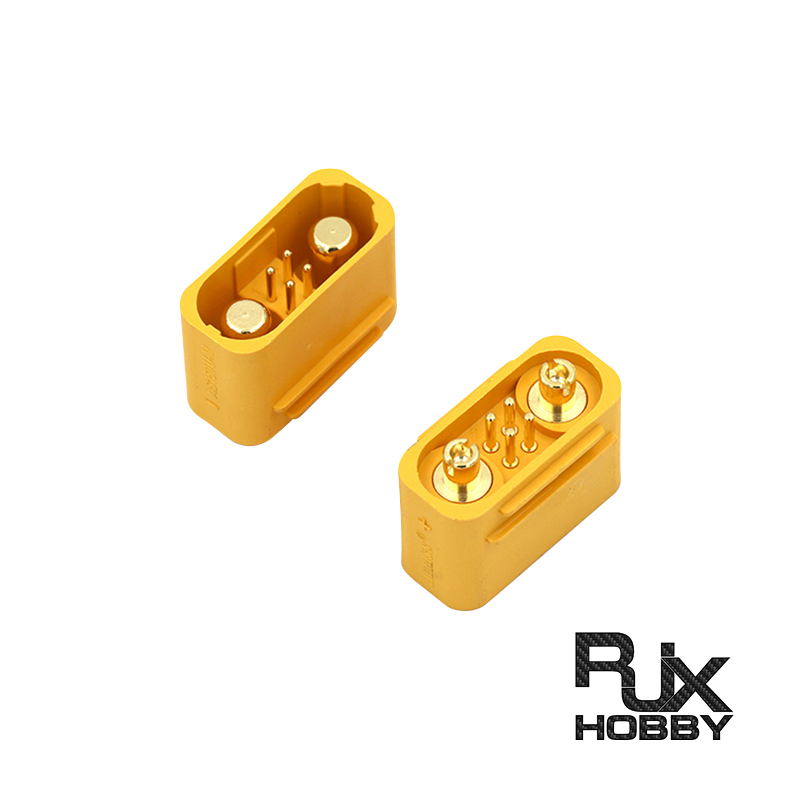

RJXHOBBY 2pcs Amass AS150UPB-M Male Plug No Resistance Large Current Plate Type Connector with Signal Pin

RJXHOBBY 2pcs Amass AS150UPB-M Male Plug No Resistance Large Current Plate Type Connector with Signal Pin
RJXHOBBY 2pcs Amass AS150UPB-M Male Plug No Resistance Large Current Plate Type Connector with Signal Pin
RJXHOBBY 2pcs Amass AS150UPB-M Male Plug No Resistance Large Current Plate Type Connector with Signal Pin
RJXHOBBY 2pcs Amass AS150UPB-M Male Plug No Resistance Large Current Plate Type Connector with Signal Pin
RJXHOBBY 2pcs Amass AS150UPB-M Male Plug No Resistance Large Current Plate Type Connector with Signal Pin
RJXHOBBY 2pcs Amass AS150UPB-M Male Plug No Resistance Large Current Plate Type Connector with Signal Pin
RJXHOBBY 2pcs Amass AS150UPB-M Male Plug No Resistance Large Current Plate Type Connector with Signal Pin
RJXHOBBY 2pcs Amass AS150UPB-M Male Plug No Resistance Large Current Plate Type Connector with Signal Pin
RJXHOBBY 2pcs Amass AS150UPB-M Male Plug No Resistance Large Current Plate Type Connector with Signal Pin
RJXHOBBY 2pcs Amass AS150UPB-M Male Plug No Resistance Large Current Plate Type Connector with Signal Pin
RJXHOBBY 2pcs Amass AS150UPB-M Male Plug No Resistance Large Current Plate Type Connector with Signal Pin
  • Stock: In Stock
  • Brand: RJX
  • Model: RJX3449
Based on 0 reviews. - Write a review
$20.99
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Item name: AS150UPB Male Plug

Metal material: Brass gold plated

Plastic material: PA66

FR Level: UL94 V0

Recommend USE: Battery

Temperature rise: 70A＜70℃ (1Hour); 140A＜80℃（1min）

Weld mental: Main copper 3.3; Signal pin 2.5

CR: 0.40mΩ

Rated voltage: ＜DC 50V

Rated Current: 70A

Instantaneous current: 140A

Use times: 1000 times

Insertion force: 3-5kg

Cable spec.: 8AWG/24AWG

Temperature: 20℃ to 120℃


Package Included:

2pcs x AS150UPB Male Plug
