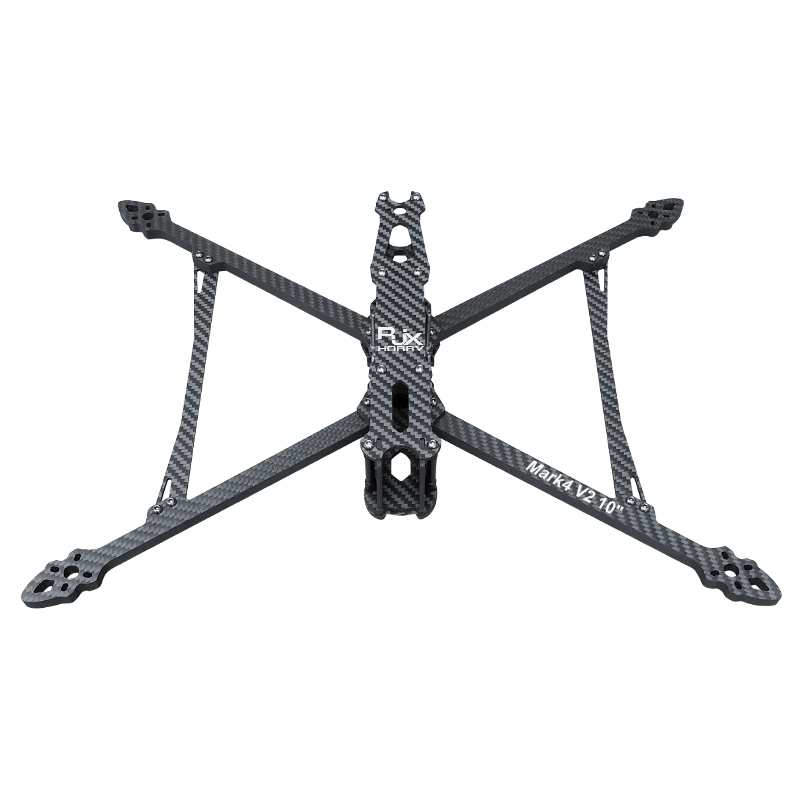

Wheelbase: 427mm
Size: 268mm*332mm
Camera mount size: 19*19mm
Image transmission installation hole spacing: 20*20mm & 30.5*30.5mm
Flight control installation hole spacing: 30.5*30.5mm
Inner space height: 35mm
Motor installation hole position: 16*16mm & 19*19mm

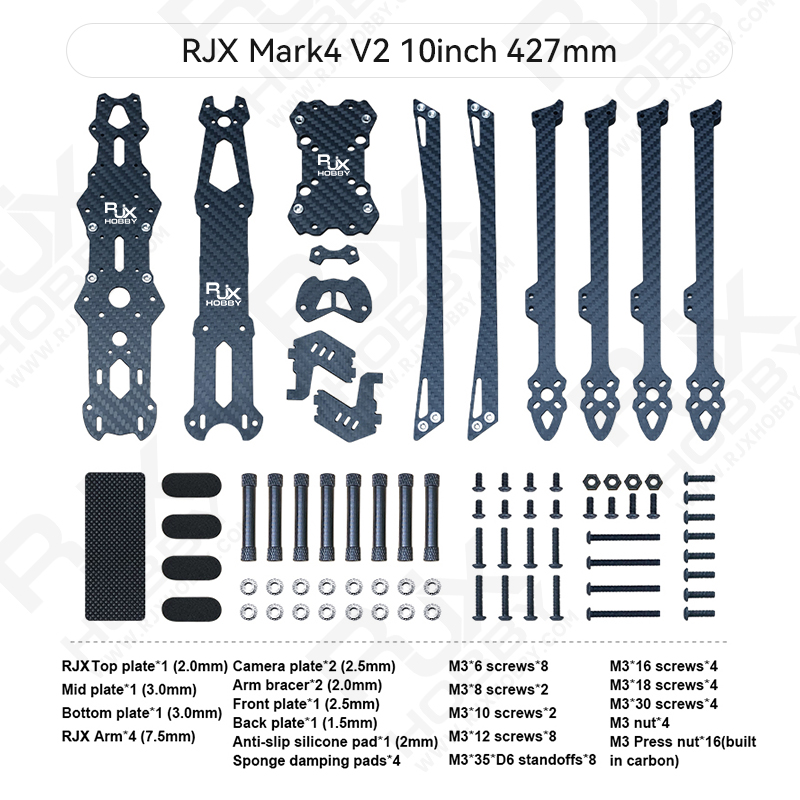

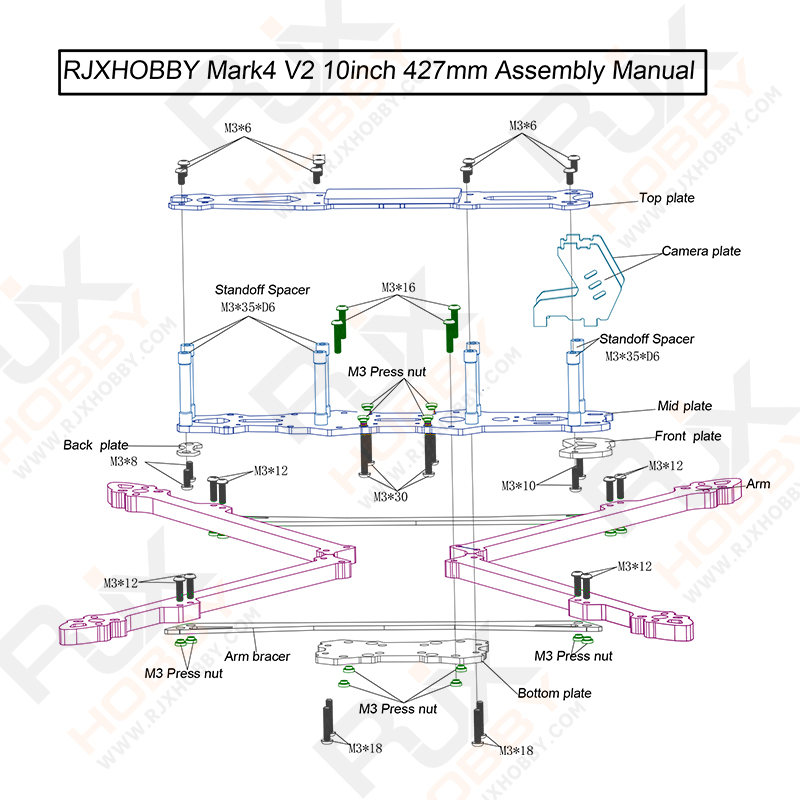

Package included:
1 x Mark4 V2 10inch FPV Frame kit
Top plate*1 (2.0mm)
Mid plate*1 (3.0mm)
Bottom plate*1(3.0mm)

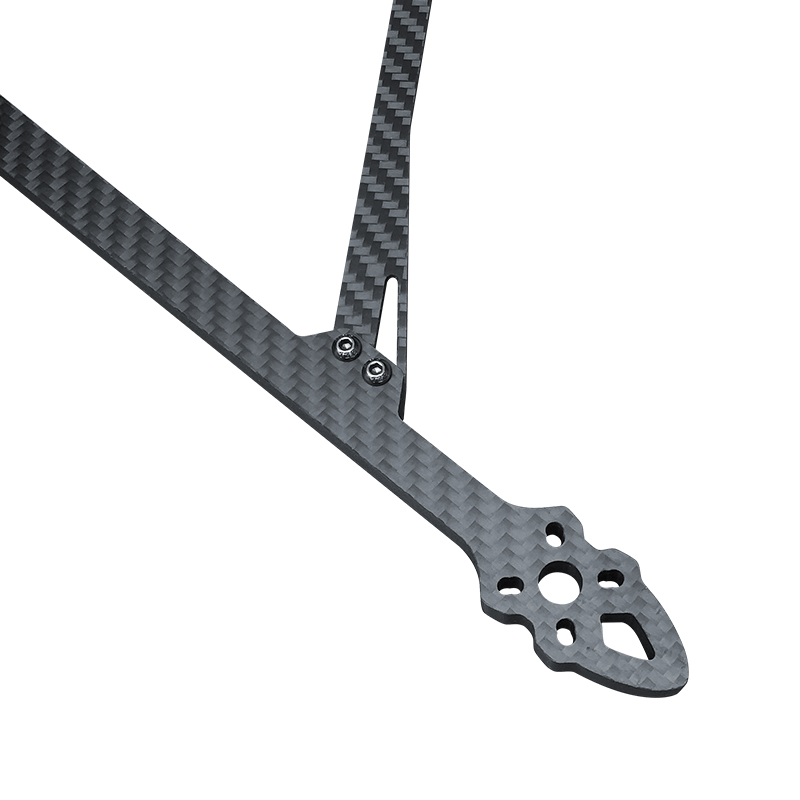

Arm*4 (7.5mm)

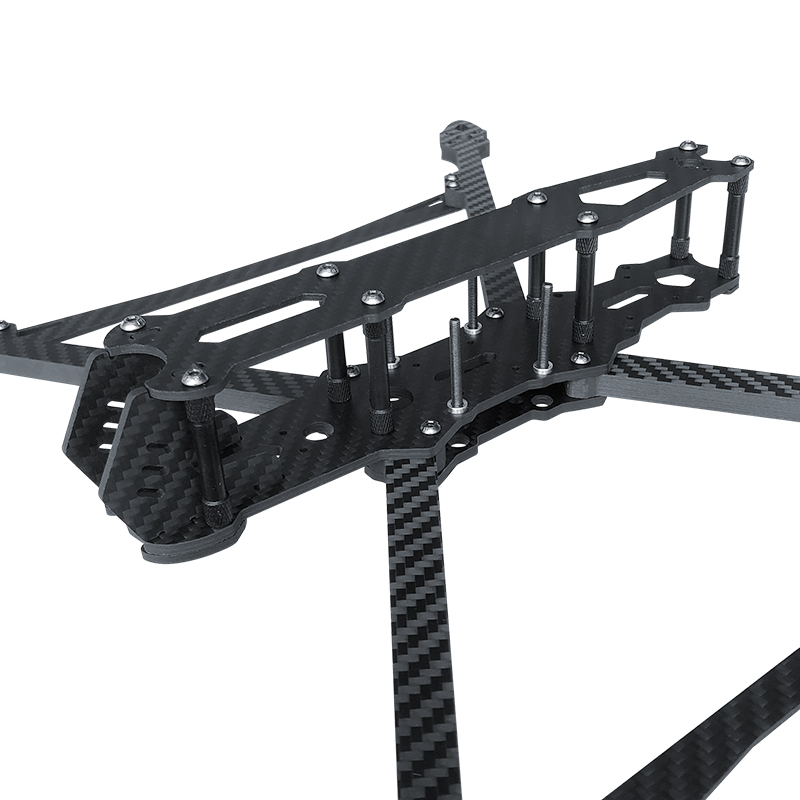

M3*35*D6 standoffs*8
Camera plate*2 (2.5mm)
Arm bracer*2(2.0mm)
Front plate *1 (2.5mm)
Back plate*1(1.5mm)
Anti-slip silicone pad*1（2mm）
Sponge damping pads*4
M3*6 screws*8
M3*8 screws*2
M3*10 screws*2
M3*12 screws*8
M3*16 screws*4
M3*18 screws*4
M3*30 screws*4
M3 nut*4
M3 Press nut *16(built in mid plate)
